Wavescape 2020
MANOEUVRE
WAVE 4-BATTEN

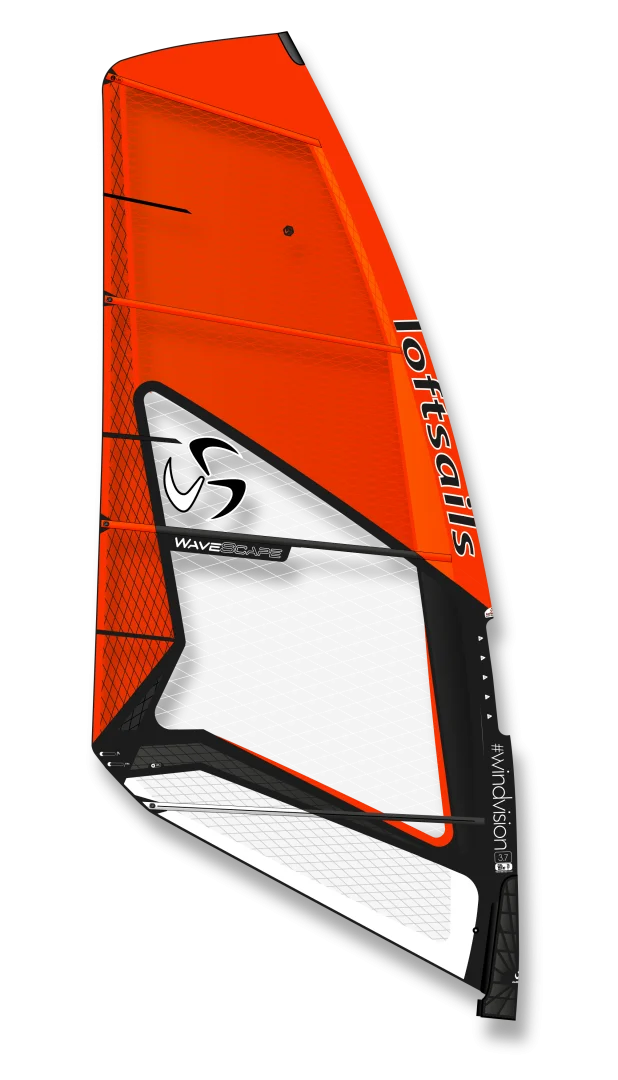

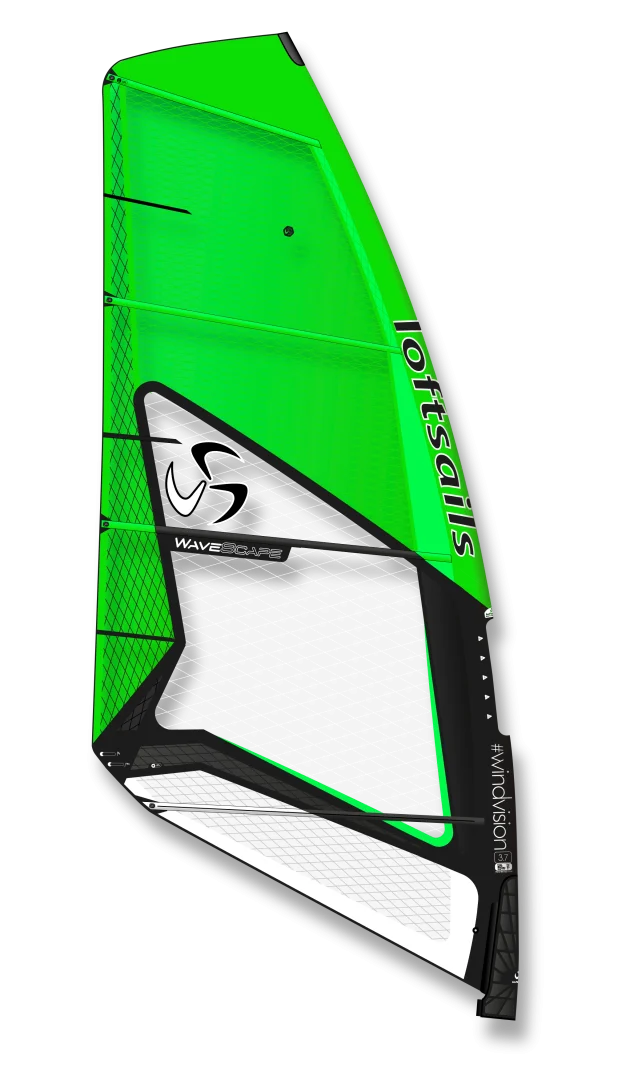

The 2020 4-batten Wavescape is light in the hands and goes soft and neutral on the wave. For the rider: this sail is freedom.
New design concept and full X-ply panel construction. Dacron mast panel for soft, powerful, compact handling. The Wavescape 2020 is the ultimate Loftsails design for wave mobility and expression.
Features
& Benefits

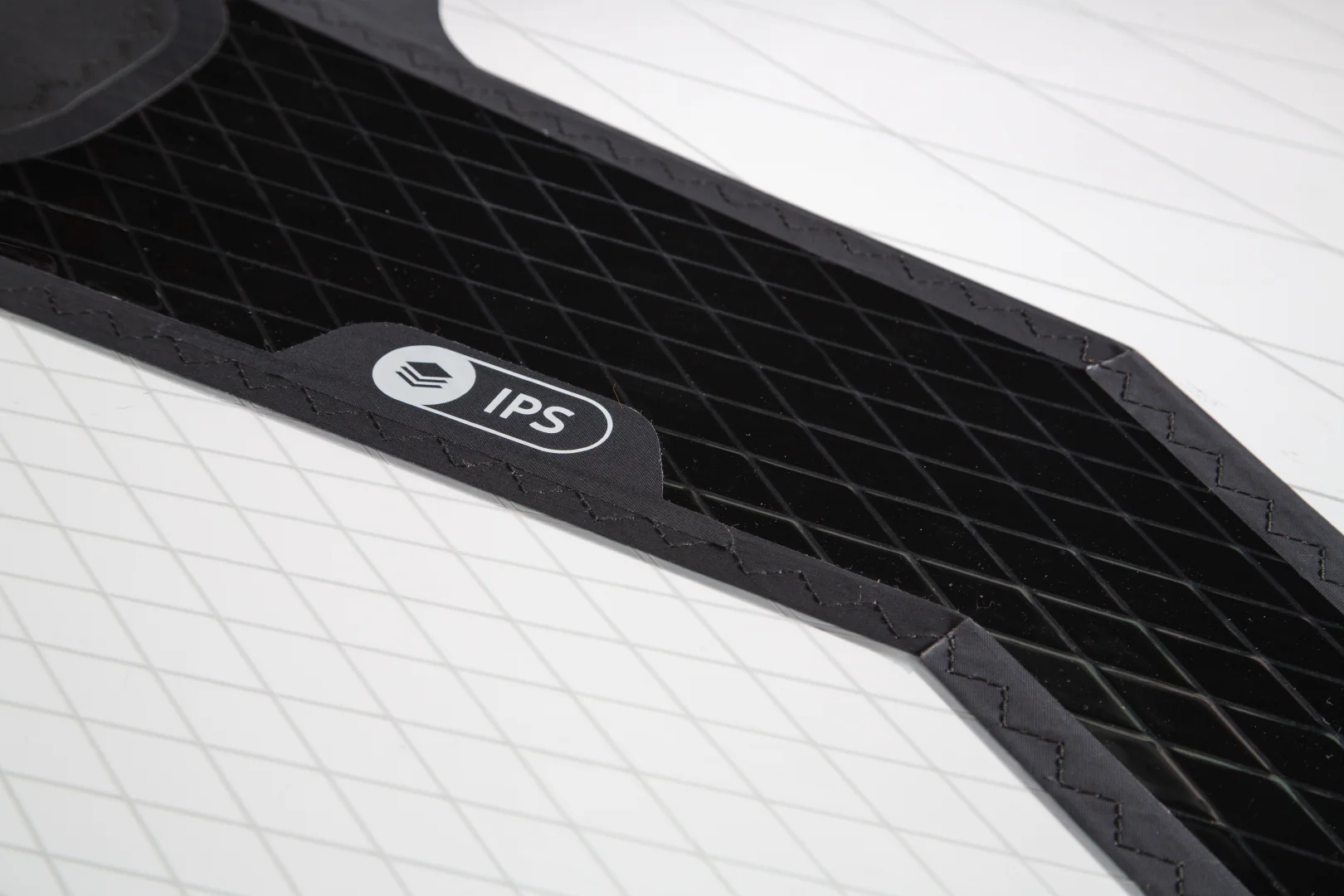

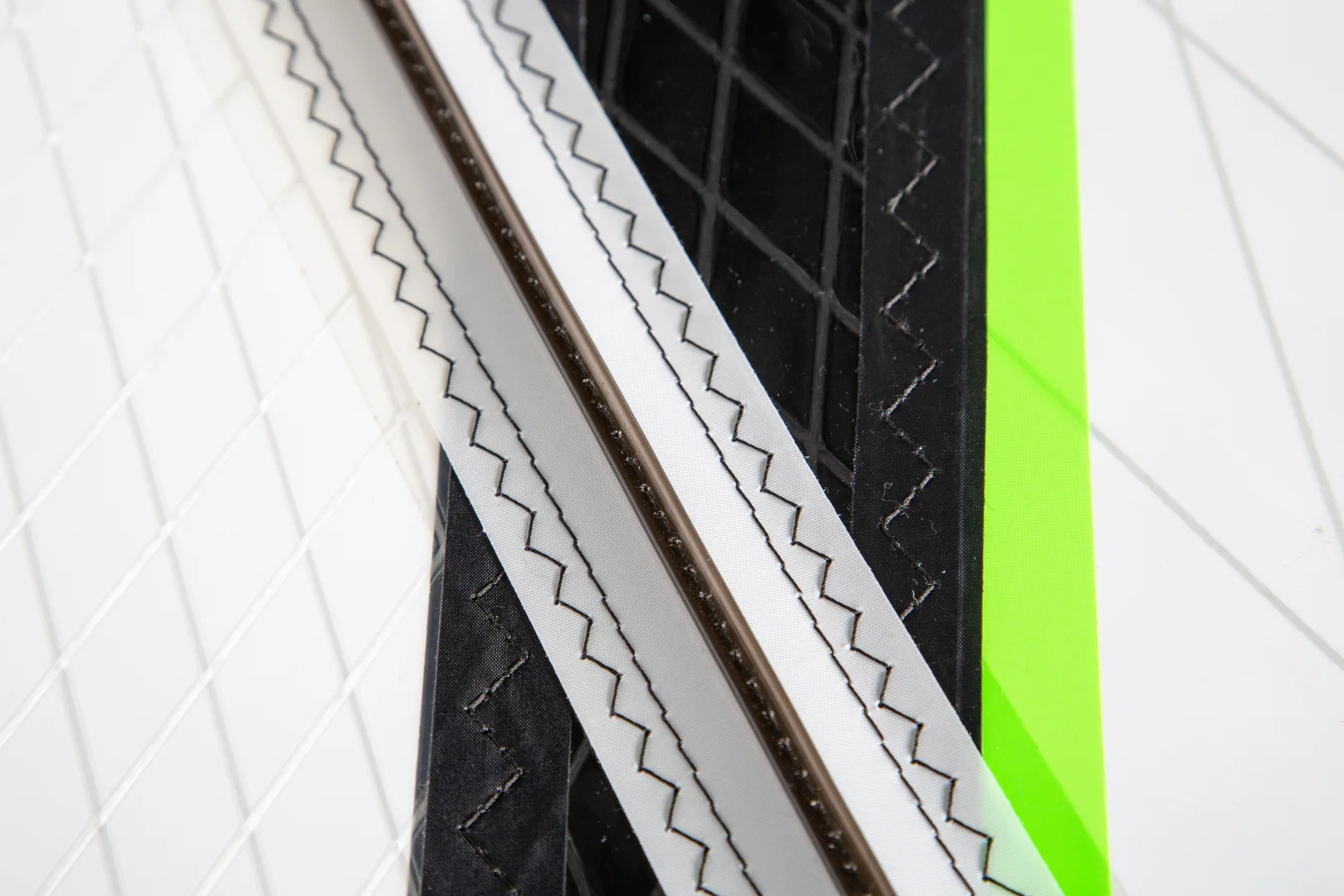

- Light and tough: Integrated Panel Concept (IPC); 3-layer head/tack/clew radials extend into the all X-Ply body – ultimate resistance in heavy surf
- Total X-Ply construction
- Super durable full IYU250 4-part mast pocket – the perfect material between your mast and the elements
- Double Dacron head panels – easy roll-up, durability, longevity
- Triple-reinforced foot, leech and luff construction for maximised longevity of your rig
- High visibility window - see the lip from your bottom turn

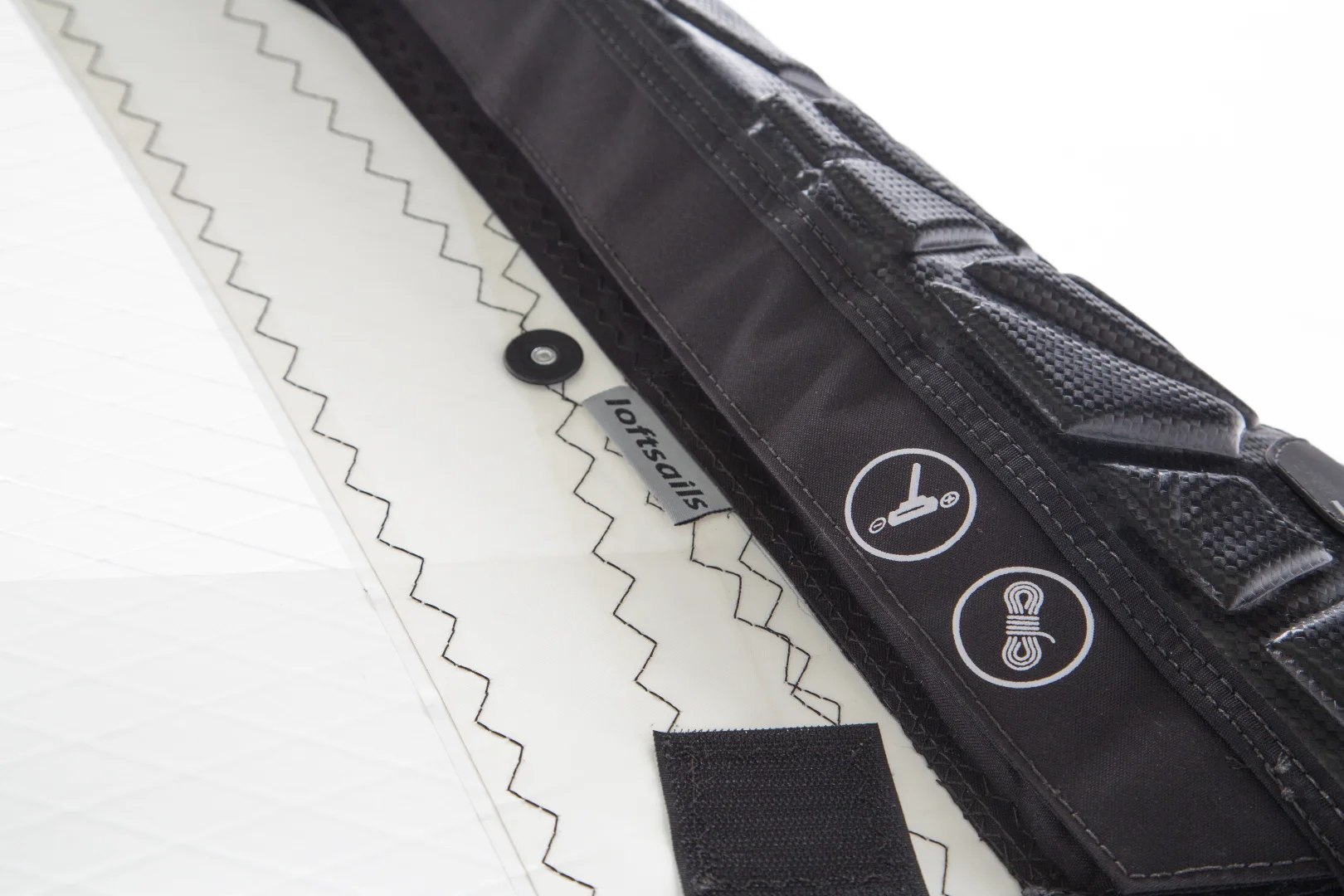

- Loftsails full-opening mast pad design - easy access to your mastextension, downhaul system and batten trim key

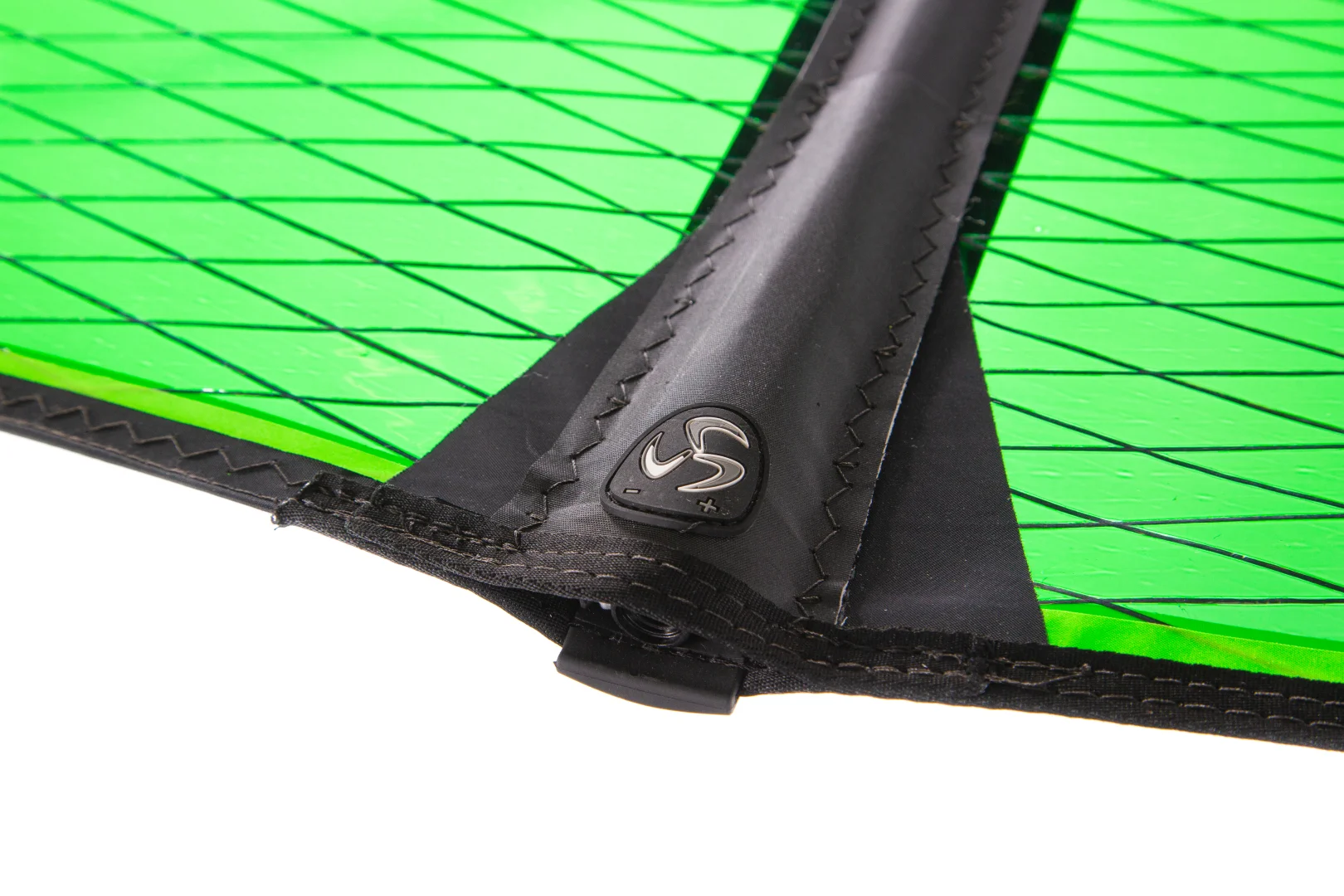

- Forward-profile batten systems with Standing Battens at specific locations– responsive, low-end drive and easy upper end handling

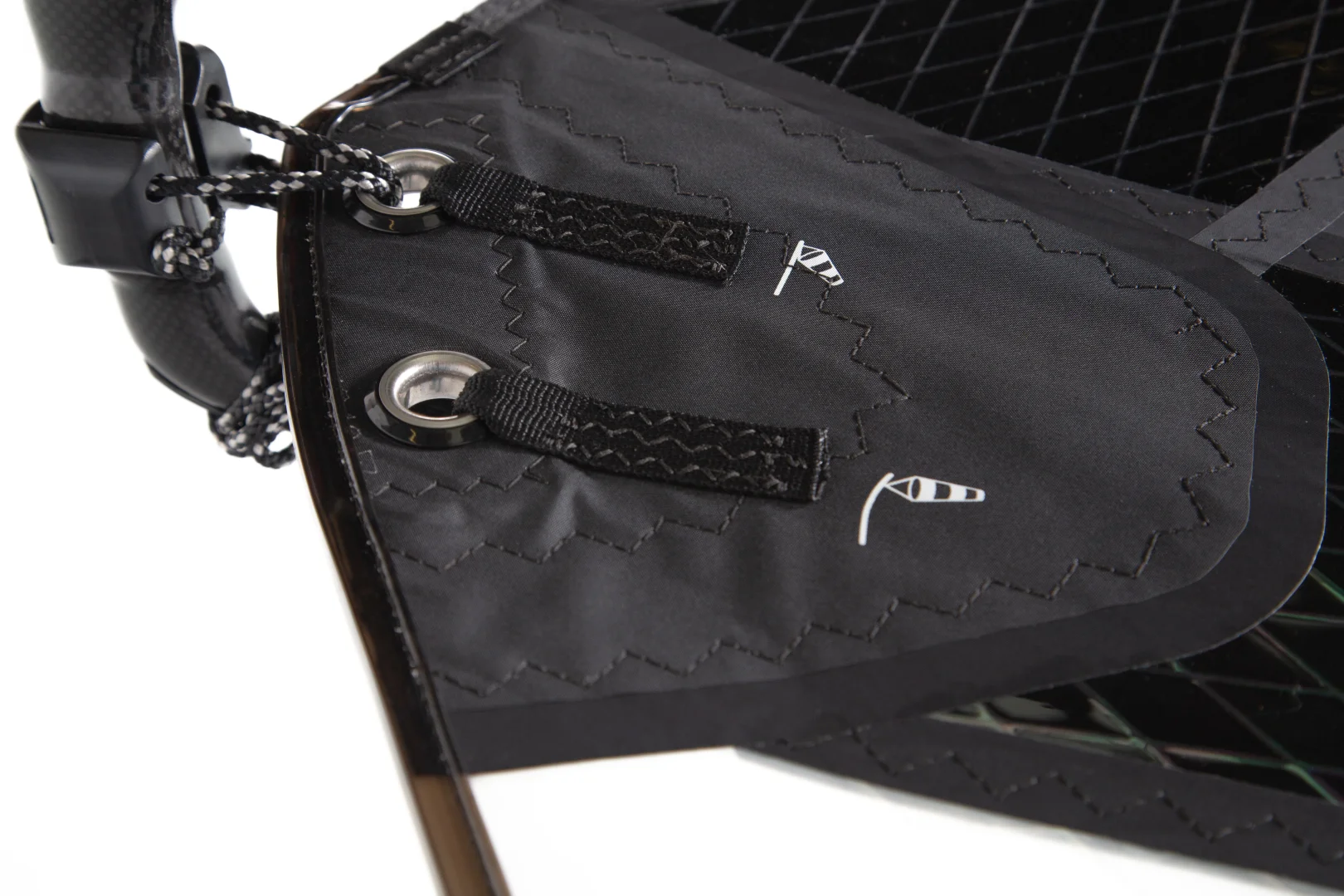

- Dual clew eyelets with webbings – adjust leech-release character to suit your sailing conditions
- Trim marker - leech-release reference: dial into your sailing conditions
- RDM recommended, SDM compatible – both mast types compatible to maximise your windsurfing experience
Click to reveal features.
Sail Specifications
| Description | Size | Luff | Boom | Vario Top | Extension | Cambers | Battens | Recommended Mast | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Wavescape 3.7 Green 2020 | 3.7 m2 | 360 cm | 152 cm | Vario Top | 20 cm | 0 | 4 | Team Edition 340 | 2.73 kg |
| Wavescape 3.7 Orange 2020 | 3.7 m2 | 360 cm | 152 cm | Vario Top | 20 cm | 0 | 4 | Team Edition 340 | 2.73 kg |
| Wavescape 4.0 Green 2020 | 4.0 m2 | 370 cm | 156 cm | Vario Top | 30 cm | 0 | 4 | Team Edition 340 | 2.82 kg |
| Wavescape 4.0 Orange 2020 | 4.0 m2 | 370 cm | 156 cm | Vario Top | 30 cm | 0 | 4 | Team Edition 340 | 2.82 kg |
| Wavescape 4.2 Green 2020 | 4.2 m2 | 380 cm | 158 cm | Fixed | 10 cm | 0 | 4 | Team Edition 370 | 2.9 kg |
| Wavescape 4.2 Orange 2020 | 4.2 m2 | 380 cm | 158 cm | Fixed | 10 cm | 0 | 4 | Team Edition 370 | 2.9 kg |
| Wavescape 4.5 Green 2020 | 4.5 m2 | 398 cm | 164 cm | Fixed | 28 cm | 0 | 4 | Team Edition 370 | 2.98 kg |
| Wavescape 4.5 Orange 2020 | 4.5 m2 | 398 cm | 164 cm | Fixed | 28 cm | 0 | 4 | Team Edition 370 | 2.98 kg |
| Wavescape 4.7 Green 2020 | 4.7 m2 | 404 cm | 168 cm | Fixed | 34 cm | 0 | 4 | Team Edition 370 | 3.09 kg |
| Wavescape 4.7 Orange 2020 | 4.7 m2 | 404 cm | 168 cm | Fixed | 34 cm | 0 | 4 | Team Edition 370 | 3.09 kg |
| Wavescape 5.0 Green 2020 | 5.0 m2 | 418 cm | 170 cm | Fixed | 18 cm | 0 | 4 | Team Edition 400 | 3.19 kg |
| Wavescape 5.0 Orange 2020 | 5.0 m2 | 418 cm | 170 cm | Fixed | 18 cm | 0 | 4 | Team Edition 400 | 3.19 kg |
| Wavescape 5.4 Green 2020 | 5.4 m2 | 434 cm | 178 cm | Fixed | 34 cm | 0 | 4 | Team Edition 400 | 3.26 kg |
| Wavescape 5.4 Orange 2020 | 5.4 m2 | 434 cm | 178 cm | Fixed | 34 cm | 0 | 4 | Team Edition 400 | 3.26 kg |
| Wavescape 5.7 Green 2020 | 5.7 m2 | 448 cm | 182 cm | Fixed | 18 cm | 0 | 4 | Team Edition 430 | 3.4 kg |
| Wavescape 5.7 Orange 2020 | 5.7 m2 | 448 cm | 182 cm | Fixed | 18 cm | 0 | 4 | Team Edition 430 | 3.4 kg |
| Wavescape 6.2 Green 2020 | 6.2 m2 | 466 cm | 190 cm | Fixed | 36 cm | 0 | 4 | Team Edition 430 | 3.55 kg |
| Wavescape 6.2 Orange 2020 | 6.2 m2 | 466 cm | 190 cm | Fixed | 36 cm | 0 | 4 | Team Edition 430 | 3.55 kg |
Gallery
Quotes
Monty Spindler
The Wavescape 2020 is totally fresh... soft, super light handling on the wave, responsive power on the way out.
Monty Spindler
The Wavescape 2020 is totally fresh... soft, super light handling on the wave, responsive power on the way out.
Frequently asked questions?
Find the answers of your Wavescape 2020 questions
Just click the box below.
What does 1 Year Unconditional + 1 Year Conditional warranty cover?
Warranty is valid 2 years after date of purchase. When making a warranty claim in the first year the product is unconditionally warranted. When making a warranty claim in the 2nd year the product must have clearly suffered from a manufacturer error.
