Oxygen 2022
NO-CAM
FREERACE

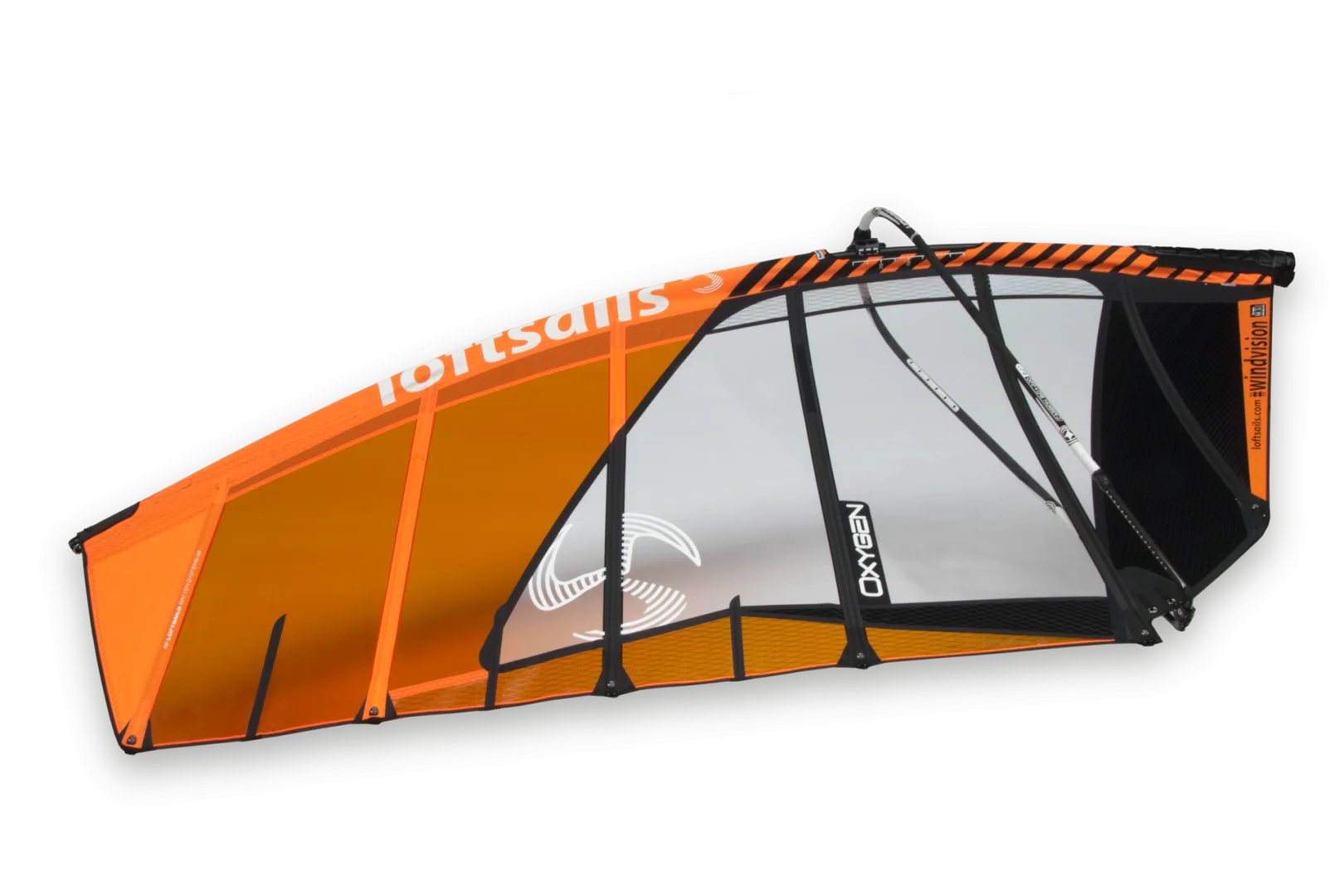

The Oxygen design is pure and easy freeride performance.
Making its first appearance back in 1999, the Oxygen 2021 continues the legacy of being a proven and reliable freeride design.
Sporting fresh new colours for the coming season, the updated Oxygen has a higher aspect ratio that allows for the use of a shorter boom. The mast length increase is balanced by the introduction of a closed sleeve head, replacing the previous plug fitting.
Luff curves and leech configuration had been redesigned to offer more solid bottom end power and a higher range of trim possibilities.
Features
& Benefits

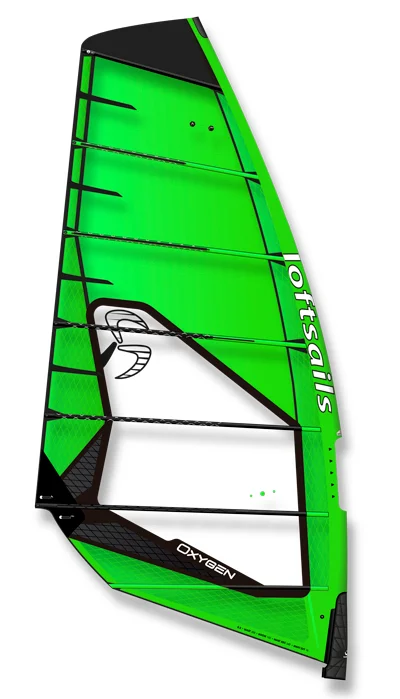

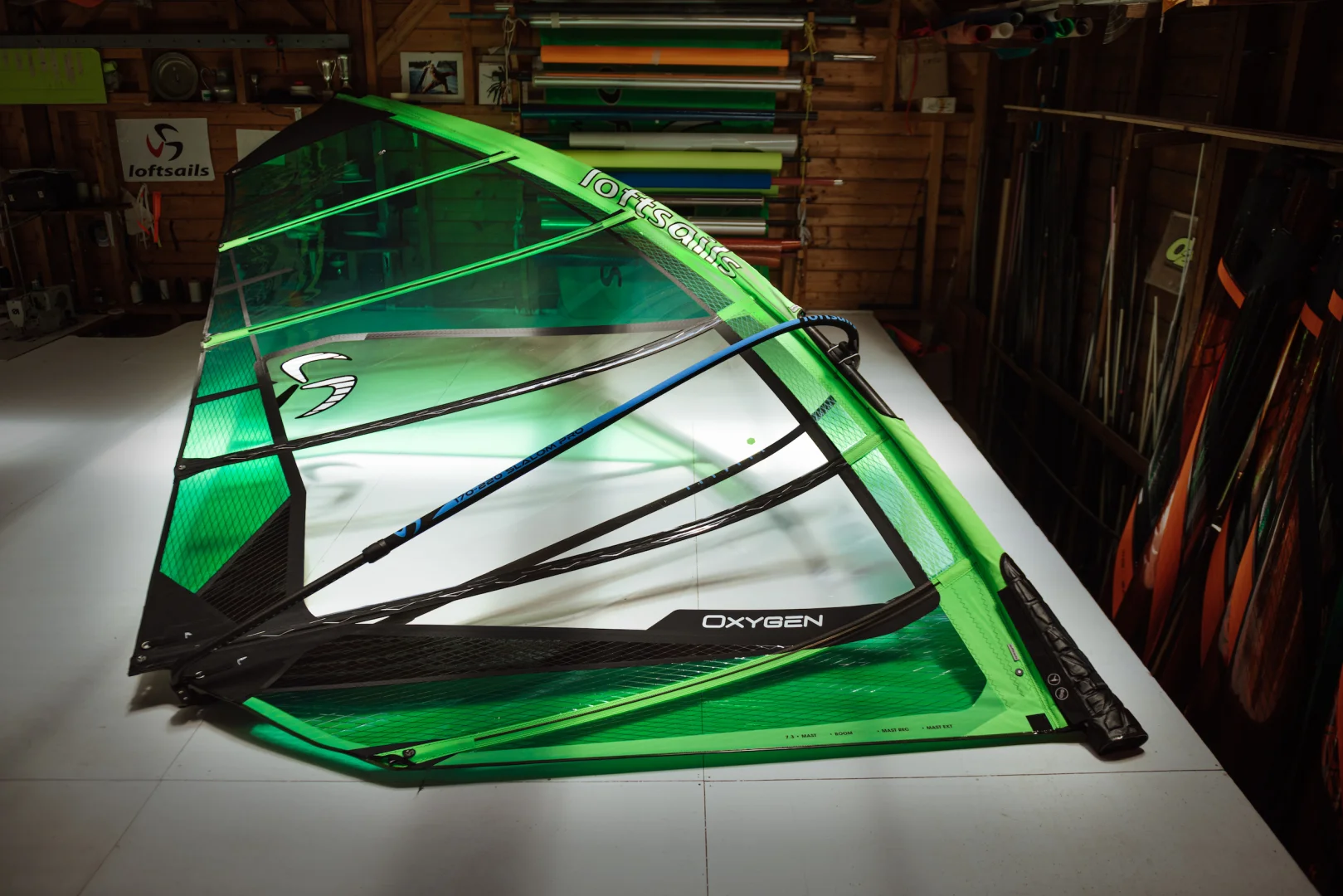

- Green: Full X-Ply – 5 mil biaxial luff and foot panels, 4 mil biax window panels, 3.5 mil biax leech panels, 2 mil upper body panels

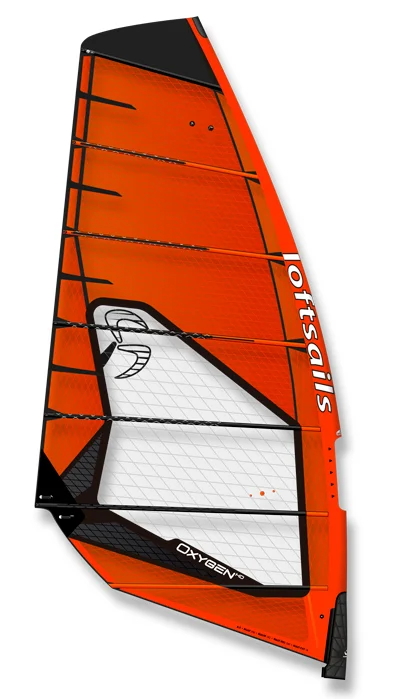

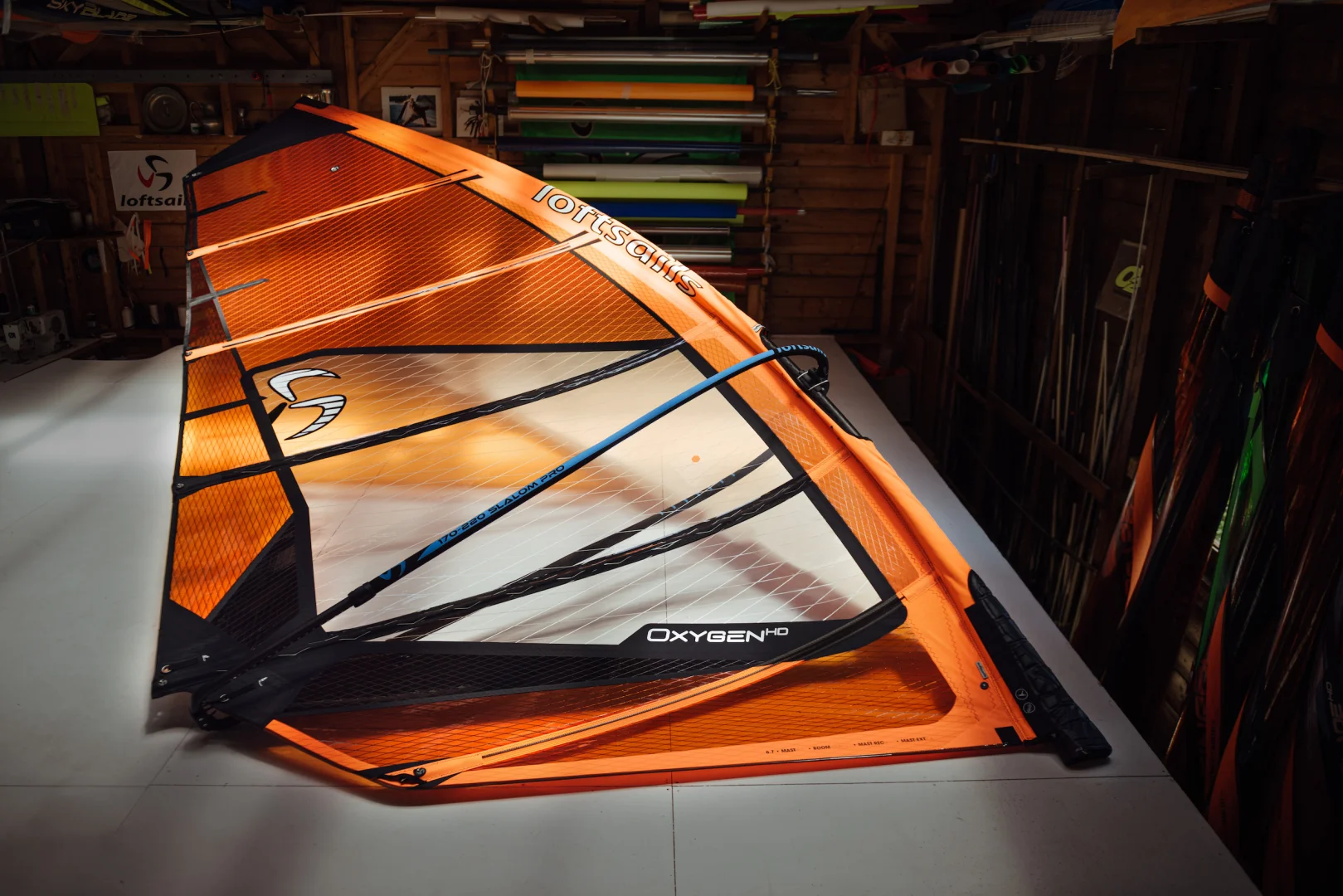

- Orange: 5 mil biaxial luff and foot panels, 5 mil mono window and 4 mil mono body panels
- Tubed batten systems – control in the upper end
- Dual clew eyelets with webbings – adjust leech release character to suit your sailing conditions
- Cross batten with leech extension batten and inset clew – connects the boom to the batten structure and promotes lower leech twist for upper-end ease
- Super durable full IYU250 4-part mast pocket – the perfect material between your mast and the elem
- Double dacron head panels – easy roll-up, durability, longevity
- Sizes 7.8 and up 7 battens, 7.3 and down 6 battens
- Loftsails full-opening mast pad design – easy access to your mast extension, downhaul system and batten trim key
- Trim: leech-release reference logo to dial in trim
Click to reveal features.
Sail Specifications
| Description | Size | Luff | Boom | Vario Top | Extension | Cambers | Battens | Recommended Mast | Weight |
|---|---|---|---|---|---|---|---|---|---|
| Oxygen 4.6 Green HD 2022 | 4.6 m2 | 388 cm | 162 cm | Vario Top | 18 cm | 0 | 6 | Vision 370 | 3.65 kg |
| Oxygen 4.6 Orange 2022 | 4.6 m2 | 388 cm | 162 cm | Vario Top | 18 cm | 0 | 6 | Vision 370 | 3.65 kg |
| Oxygen 5.3 Green HD 2022 | 5.3 m2 | 412 cm | 176 cm | Vario Top | 12 cm | 0 | 6 | Vision 400 | 3.9 kg |
| Oxygen 5.3 Orange 2022 | 5.3 m2 | 412 cm | 176 cm | Vario Top | 12 cm | 0 | 6 | Vision 400 | 3.9 kg |
| Oxygen 5.8 Green HD 2022 | 5.8 m2 | 426 cm | 188 cm | Vario Top | 26 cm | 0 | 6 | Vision 400 | 4.08 kg |
| Oxygen 5.8 Orange 2022 | 5.8 m2 | 426 cm | 188 cm | Vario Top | 26 cm | 0 | 6 | Vision 400 | 4.08 kg |
| Oxygen 6.3 Green HD 2022 | 6.3 m2 | 440 cm | 194 cm | Fixed | 10 cm | 0 | 6 | Vision 430 | 4.22 kg |
| Oxygen 6.3 Orange 2022 | 6.3 m2 | 440 cm | 194 cm | Fixed | 10 cm | 0 | 6 | Vision 430 | 4.28 kg |
| Oxygen 6.8 Green HD 2022 | 6.8 m2 | 460 cm | 200 cm | Fixed | 30 cm | 0 | 6 | Vision 430 | 4.32 kg |
| Oxygen 6.8 Orange 2022 | 6.8 m2 | 460 cm | 200 cm | Fixed | 30 cm | 0 | 6 | Vision 430 | 4.32 kg |
| Oxygen 7.0 Green HD 2022 | 7.0 m2 | 466 cm | 206 cm | Fixed | 36 cm | 0 | 6 | Vision 430 | 4.48 kg |
| Oxygen 7.0 Orange 2022 | 7.0 m2 | 466 cm | 206 cm | Fixed | 36 cm | 0 | 6 | Vision 430 | 4.48 kg |
| Oxygen 7.3 Green HD 2022 | 7.3 m2 | 474 cm | 208 cm | Fixed | 14 cm | 0 | 6 | Vision 460 | 4.56 kg |
| Oxygen 7.3 Orange 2022 | 7.3 m2 | 474 cm | 208 cm | Fixed | 14 cm | 0 | 6 | Vision 460 | 4.56 kg |
| Oxygen 7.8 Green HD 2022 | 7.8 m2 | 488 cm | 218 cm | Fixed | 28 cm | 0 | 7 | Vision 460 | 5.01 kg |
| Oxygen 7.8 Orange 2022 | 7.8 m2 | 488 cm | 218 cm | Fixed | 28 cm | 0 | 7 | Vision 460 | 5.01 kg |
| Oxygen 8.5 Green HD 2022 | 8.5 m2 | 510 cm | 224 cm | Fixed | 20 cm | 0 | 7 | Vision 490 | 5.48 kg |
| Oxygen 8.5 Orange 2022 | 8.5 m2 | 510 cm | 224 cm | Fixed | 20 cm | 0 | 7 | Vision 490 | 5.48 kg |
| Oxygen 9.5 Green HD 2022 | 9.5 m2 | 532 cm | 242 cm | Fixed | 12 cm | 0 | 7 | Vision 520 | 6.1 kg |
| Oxygen 9.5 Orange 2022 | 9.5 m2 | 532 cm | 242 cm | Fixed | 12 cm | 0 | 7 | Vision 520 | 6.1 kg |
Gallery
What does 1 Year Unconditional + 1 Year Conditional warranty cover?
Warranty is valid 2 years after date of purchase. When making a warranty claim in the first year the product is unconditionally warranted. When making a warranty claim in the 2nd year the product must have clearly suffered from a manufacturer error.
