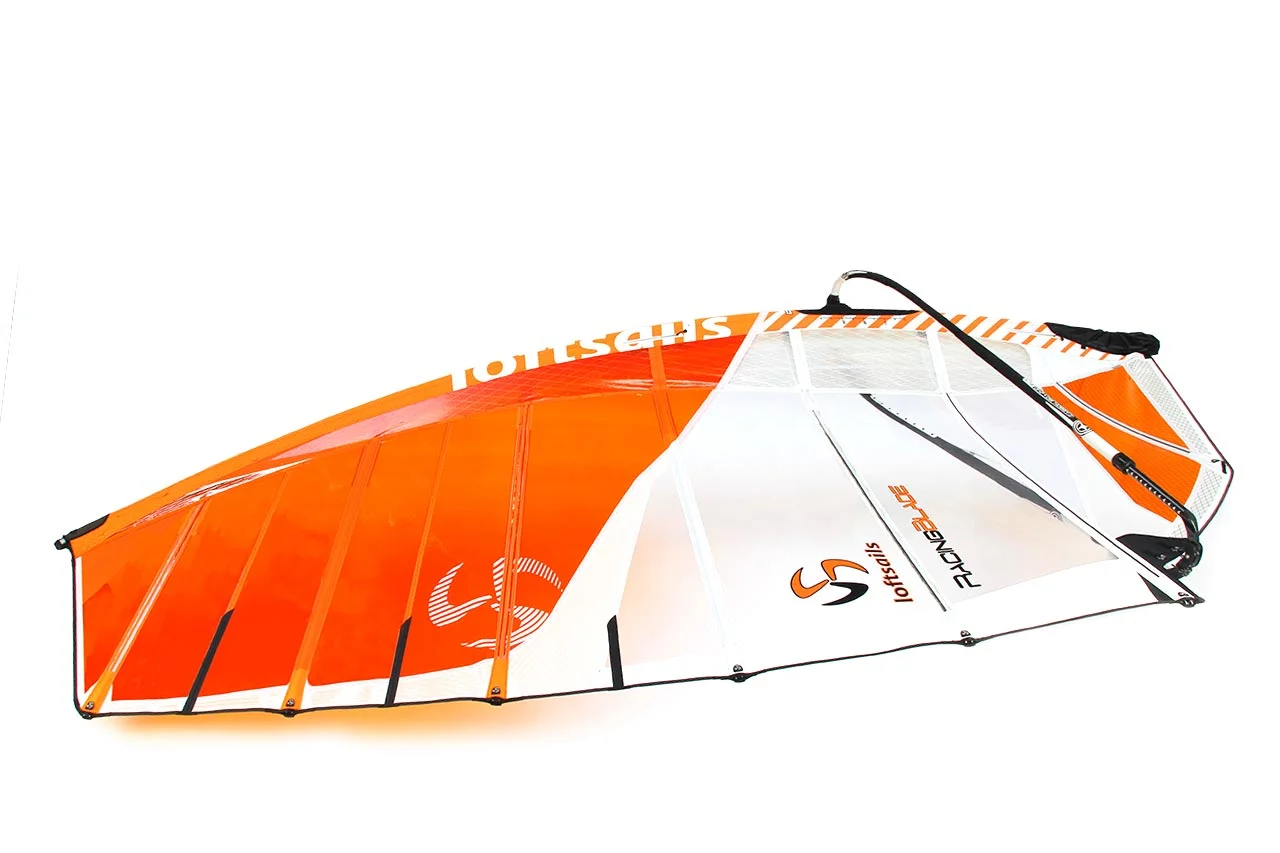

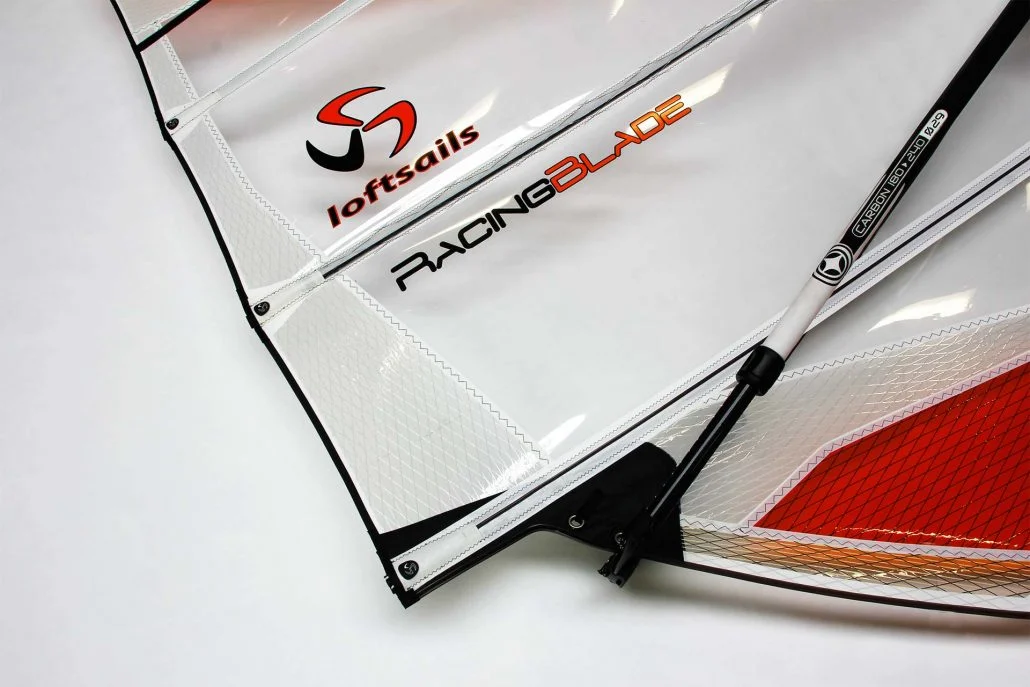

Racing Blade 2017


Sizes: 5.0 5.6 6.3 7.0 7.8 8.6 9.2 9.6

& Benefits

  • Internal vertical and horizontal Kevlar strip applications at cams – Maintain stability and define shape profiles
  • Racingblade mast-pocket construction features mast panel and 2-mm. Triax mast-pocket sides (3 layers) that are tensioned directly (all 3 layers under tack pulley webbings) – Therefore downhaul tension is equalized between the mast panel and the mast pocket, resulting in the Racingblade’s firm, clean, easy-rotating leading edge
  • Blade mast-pocket construction – Equalized loading between the mast panel (interior) and the pocket (exterior) – The result is tensioned, firm mast pockets, exceptional durability, rotation ease
  • 4-mm. Dimension Polyant monofilm body panels – proven superior performance
  • Tubed battens with varying carbon content according to performance. The top 3 are specialized 100% carbon tubes – Carbon tubes deliver superior stiffness to maximize stability for your upper end
  • Slick Tekcam2 rotation. (Tekcam2 Large for SDM also supplied) – Easy cam rotation makes your windsurfing experience more enjoyable
  • Metallic cam interfaces – MCIs eliminate contact point degradation characteristic of cam designs without MCIs
  • Centered battens in X-Ply sleeves. (Alternate pocket sides) – Using similar material for the batten pocket as the body material minimizes asymmetric character of Dacron batten pocket construction that, due to Dacron stretch, allows the batten to stay on the sail side. Pockets made with laminate pockets force the batten to stay centered. This is important to keep the sail symmetrical. – If all batten pockets are Dacron, and mounted on the same side of the sail – the sail will be biased to one tack and rotate unevenly. Loftsails X-Ply batten pockets that alternate sides limit asymmetric character

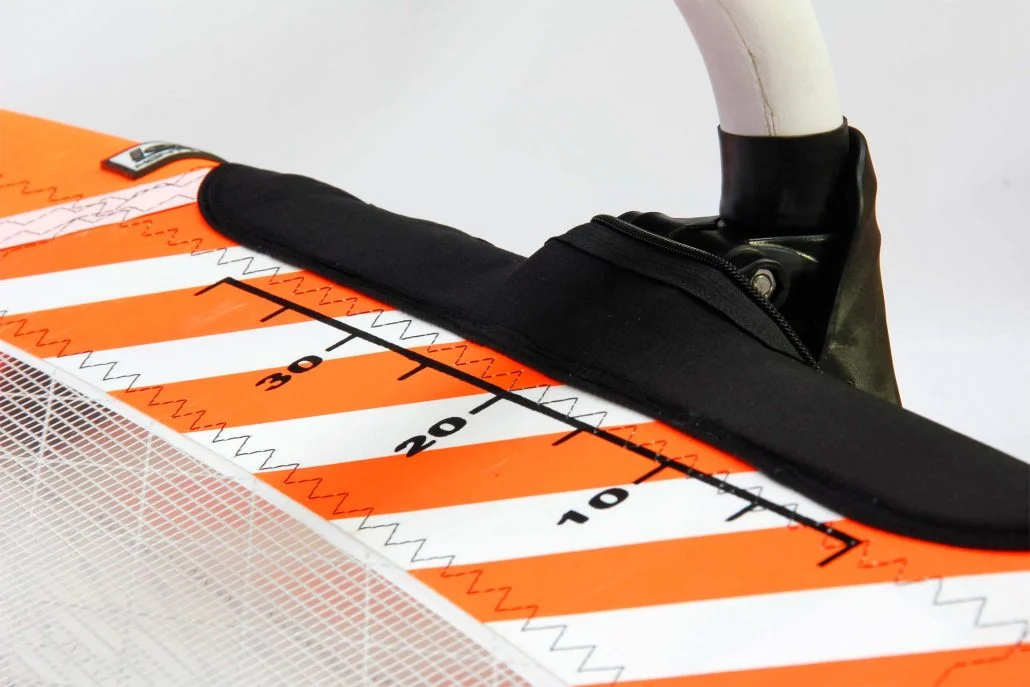

  • Streamlined neoprene boom cutout with dual zippers – limits water entry into the mast sleeve during falls, keeping the rig light for a fast recovery
  • RDM/SDM compatible – Both mast types fully compatible to maximize your windsurfing experience
  • 7-mm. monofilm vertical internal panel (inside mast-pocket) – For profile stability



Sail Specifications

Description Size Luff Boom Vario Top Extension Cambers Battens Recommended Mast Weight
Racing Blade 5.0 Orange 2017 5.0 m2 414 cm 174 cm Fixed 14 cm 4 7 400 TEAM EDITION SDM (RDM0/SDM) 5.26 kg
Racing Blade 5.6 Orange 2017 5.6 m2 430 cm 186 cm Fixed 30 cm 4 7 400 TEAM EDITION SDM (RDM0/SDM) 5.52 kg
Racing Blade 6.3 Orange 2017 6.3 m2 450 cm 198 cm Fixed 20 cm 4 7 430 TEAM EDITION SDM (RDM/SDM) 5.79 kg
Racing Blade 7.0 Orange 2017 7.0 m2 468 cm 206 cm Fixed 38 cm 4 7 430 TEAM EDITION SDM (RDM/SDM) 6.03 kg
Racing Blade 7.8 Orange 2017 7.8 m2 490 cm 218 cm Fixed 30 cm 4 7 460 TEAM EDITION SDM (RDM/SDM) 6.34 kg
Racing Blade 8.6 Orange 2017 8.6 m2 510 cm 232 cm Fixed 20 cm 4 7 490 TEAM EDITION SDM (RDM/SDM) 6.67 kg
Racing Blade 9.2 Orange 2017 9.2 m2 526 cm 238 cm Fixed 36 cm 4 7 490 TEAM EDITION SDM (RDM/SDM) 6.86 kg
Racing Blade 9.6 Orange 2017 9.6 m2 542 cm 244 cm Fixed 22 cm 4 7 520 TEAM EDITION SDM (RDM/SDM) 7.06 kg
