Freerace 3 Cams
Performance Profile
Technical Specifications
Program Profile
Performance Metrics
* Trim and conditions dependent
Construction Materials
See in Action
Get the Highlights
Full X-Ply layout: 5 mil biaxial luff and foot panels, 4 mil biax window panels, 3.5 mil biax leech panels, and 2 mil upper body panels.
Sails Specifications
| Size | Luff | Boom | Head | Extension | Battens | Cambers | Weight | Rec. Mast |
|---|---|---|---|---|---|---|---|---|
| 5.3 | 414 | 176/186 | Vario | 14 | 6 | 3 | 4,68 | Team Edition RDM 400 |
| 5.8 | 430 | 184/196 | Vario | 30 | 6 | 3 | 4,91 | Team Edition RDM 400 |
| 6.3 | 444 | 190/202 | Fixed | 14 | 6 | 3 | 5,04 | Team Edition RDM 430 |
| 6.8 | 464 | 196/210 | Fixed | 34 | 6 | 3 | 5,22 | Team Edition RDM 430 |
| 7.3 | 478 | 204/218 | Fixed | 18 | 7 | 3 | 5,39 | Team Edition SDM 460 |
| 7.8 | 490 | 218/228 | Fixed | 30 | 7 | 3 | 5,81 | Team Edition SDM 460 |
| 8.5 | 508 | 220/232 | Fixed | 18 | 7 | 3 | 6,06 | Team Edition SDM 490 |
Switchblade 5.3 HD Blue 2026
Description
Built to be sailed fast.
Few sails in freerace windsurfing have a legacy as established as the Loftsails Switchblade.
Born from the high-performance DNA of the Racingblade, Switchblade carries that pedigree into a more accessible 3-cam freerace design, delivering sharp acceleration, strong forward drive, and speed that comes easily.
It's built for sailors who want to sail fast, hold speed comfortably, and enjoy the feel and range of a performance sail — with a cammed, race-derived profile that delivers stability and drive, without stepping into full race complexity.
Acceleration and Power
Switchblade accelerates quickly and builds speed with little hesitation.
A higher aspect ratio combined with shorter boom lengths reduces swing weight, giving the sail a lighter, more agile feel through gybes and transitions. A slightly lower foot adds immediate drive once sheeted in, helping the sail accelerate cleanly without the need for constant input.
For 2026, balance is further refined through re-scheduled luff curves and re-oriented batten angles. The updated batten layout guides load more efficiently through the sail, keeping power lower and more centered as wind strength builds.
Locked-In Drive Across a Wide Wind Range
At the core of Switchblade's stability across its wind range is its batten frame.
The tubed batten system delivers the stiffness and reflex typically associated with competitive racing designs, maintaining a clean, efficient profile as speed and wind strength increase. This structural stiffness is enhanced by a dedicated cross batten, which links the boom directly to the batten frame.
Working together with the leech extension and inset clew, the cross batten promotes lower leech twist and improves control in the upper wind range, helping the sail stay settled and predictable when sailed powered.
Two clew eyelets further extend the usable range. The upper eyelet adds depth and drive for lighter conditions, while the lower eyelet flattens the profile and opens the leech progressively, helping maintain control as the speed increases.
TekCam 3: Lighter, Smoother, More Refined

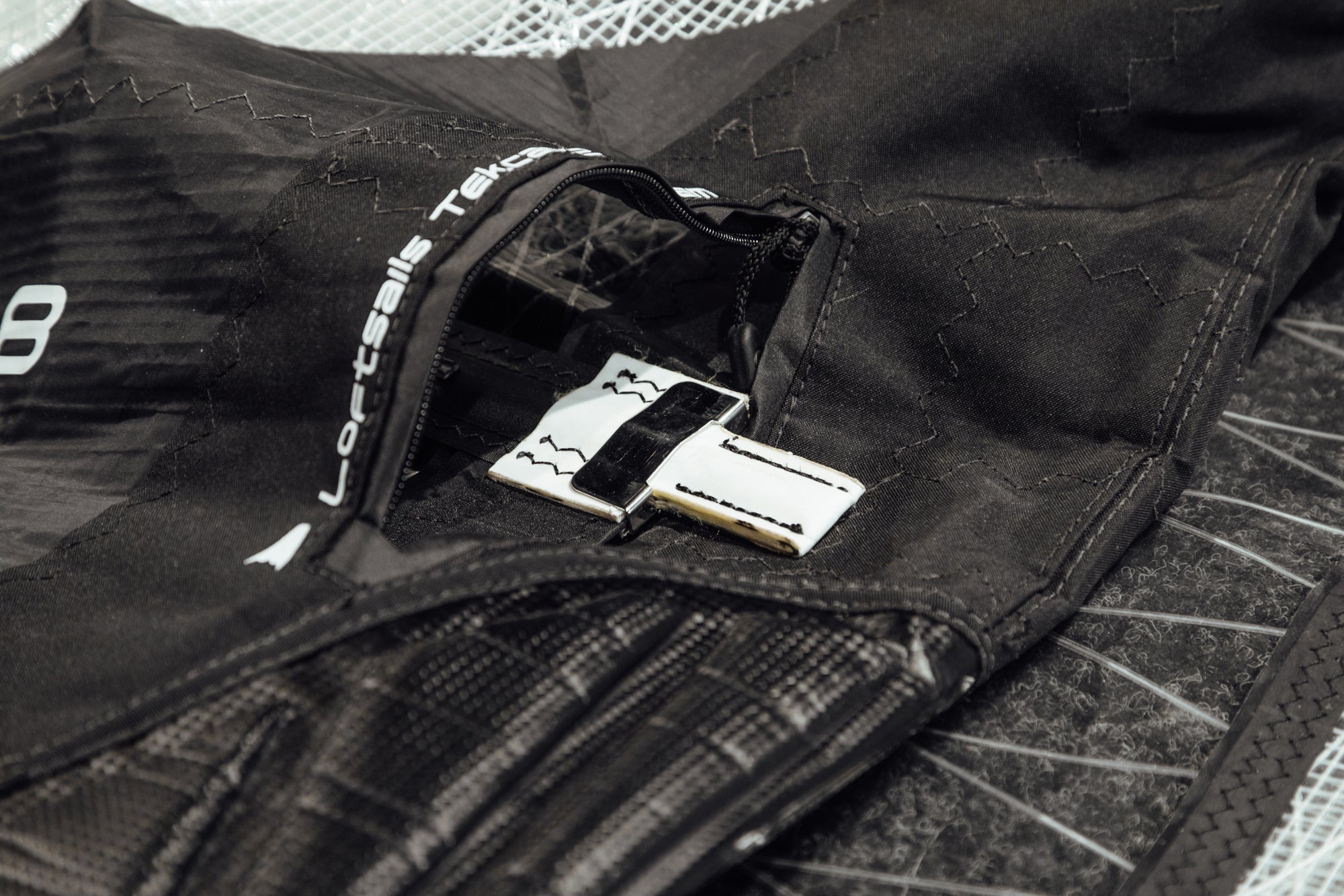

Switchblade features the TekCam 3 camber system, reducing cam weight by 35% while improving rotation and overall handling.
The lighter system supports higher batten angles and refined shaping without compromising smooth rigging or long-term reliability.
The result is a freerace sail that feels responsive, predictable through gybes, and consistent across different trim settings.
A Lighter, More Stable Mast Pocket
Updated batten angles and cam geometry required a slightly wider mast pocket for 2026.
To avoid unnecessary weight gain, the mast pocket side panels are now constructed from 2-mil quad-axial laminate, replacing the woven materials previously used.
The quad-axial laminate also resists creasing during rigging and rolling, helping the mast pocket retain its shape and performance over time. When sailing powered, the pocket holds its geometry more consistently, supporting the sail's refined profile and keeping the center of effort stable.
The pocket remains narrower than full slalom designs, balancing race-derived stability with freerace practicality.
Designed for Long-Term Use
Durability is a core part of the Switchblade's design, built to handle regular sailing day after day, year after year.
Reinforced 5.0 mil foot panels and a robust 50 mm triple-sewn mast sleeve seam are designed to withstand years of high downhaul loads.

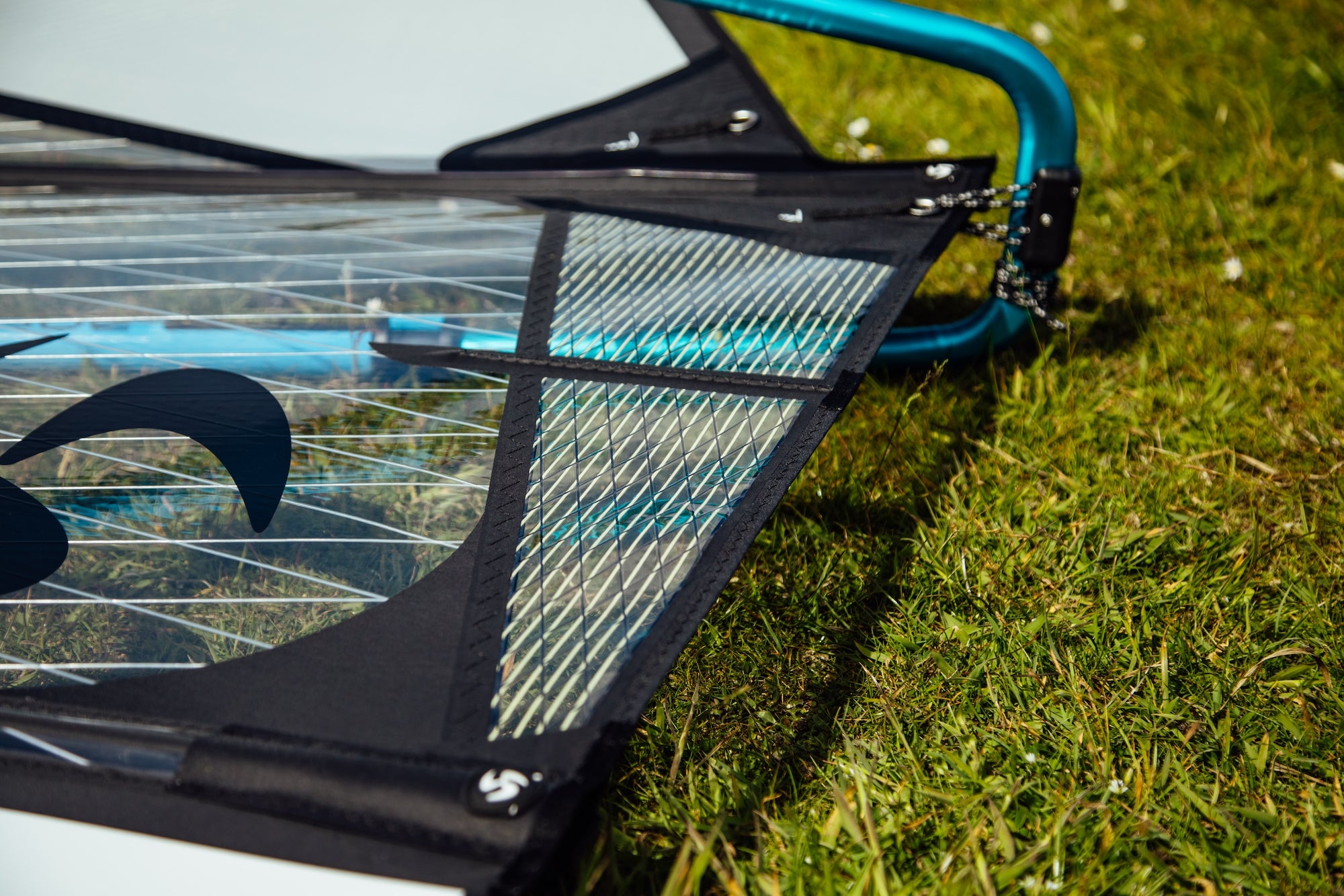

A 5.0 mil Kevlar-reinforced laminate clew panel extends from the clew up to the batten above the boom, protecting a high-load area both on the water and in the sailbag.
As always, Switchblade is available in two construction options to suit different sailing needs.
The standard build combines 5.0 mil foot panels, a 4.0 mil X-Ply central window, and 4.0 mil bi-ply upper body panels for a balanced mix of performance and durability.
For riders who sail harder or more frequently, the HD version pairs the same foot and window materials with 2.0 mil quad-axial laminate upper panels, increasing resistance to wear and impact without altering the sail's handling or performance.
Functional Minimalism
The Switchblade features a refined, speed-driven panel layout and graphics.
By reducing excess marker cloth and unnecessary scrim, overall weight is kept in check, and the sail's center of mass is lowered, improving handling and responsiveness on the water.
Every panel serves a clear function — nothing added for show, everything there for a reason.
Tax included. Shipping calculated at checkout
Choose your size:
5.3 HD BlueSwitchblade 5.3 HD Blue 2026
Tax included. Shipping calculated at checkout
Choose your size:
5.3 HD BlueFrequently asked questions
For 2026, Switchblade receives structural and balance-focused refinements to improve stability when sailed powered.
Updated shaping lowers the center of effort, while a redesigned mast pocket supports higher batten angles without adding weight. The new TekCam 3 system further improves rotation and handling consistency.
The Switchblade is designed for powered freerace sailing, where speed, stability, and efficiency matter more than early planing.
It performs best in medium to strong wind conditions on flat water or open-water chop, where sailors are sailing powered for extended periods. The sail is tuned to hold its shape and balance as pressure builds, making it well-suited to long, fast reaches and gusty race-style courses.
While it remains usable across a broad wind range, Switchblade is at its best when sailed powered rather than underpowered, rewarding committed sailing and precise trim.
The Switchblade is best suited to experienced sailors who are comfortable sailing powered and tuning their equipment.
It rewards riders who understand trim adjustments, stance, and fin pressure, and who enjoy refining their setup to extract more speed and control. Compared to freeride sails, it asks for a more deliberate approach to rigging and sailing, but without the full sensitivity and complexity of a race sail.
Sailors progressing from freeride who are confident in stronger wind and interested in higher-speed sailing will find Switchblade a natural step forward.
We recommended the Team Edition RDM 400, alternatively you can also use the Vision RDM 400.
The Switchblade pairs naturally with freerace and slalom boards in single-fin configurations.
It works particularly well on medium- to high-wind freerace boards and fin slalom boards, where its stability and forward drive can be fully utilized. The sail’s balanced pull and locked-in feel support efficient fin pressure and high-speed sailing over open water and chop.
For freeride boards focused on early planing and ease, Oxygen is generally a better match, while for full race boards and competitive use, Racingblade is the more specialized choice
While both sails are designed for speed-oriented freeride sailing, they focus on different priorities.
Oxygen is a no-cam freeride sail built around early planing, simplicity, and smooth, efficient speed. It excels in lighter wind and relaxed freeride sailing, with a forgiving feel and easy rigging, while still delivering impressive top-end speed for a cam-free design
Switchblade is a cammed freerace sail designed to be sailed powered. It delivers stronger forward drive, a more locked-in feel, and greater stability at higher speeds. It also offers more tuning range and rewards precise trim more clearly than Oxygen.
